Φ26×12 Max. Punching CNC Angle metal Punching Marking And Shearing Line 3 CNC Axes

Φ26×12 Max. Punching CNC Angle metal Punching Marking And Shearing Line 3 CNC Axes


Applicable Industry:

This machine is a purpose-engineered specialized device developed to perform angle steel punching, marking, and shearing operations. It is specifically tailored to address the core processing requirements of the angle steel tower industry, ensuring precise and efficient handling of angle steel components critical to tower manufacturing.

Specifications:

Product Composition:

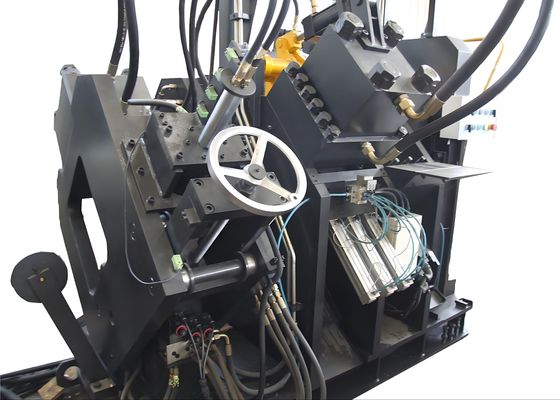

This equipment is primarily composed of a transverse conveyor, a rotating loading system, a feed-in conveyor, a CNC feed-in carriage, a punching module, a marking module, an cutting module, and an unloading conveyor— as well as hydraulic, electrical, and pneumatic systems, among other component parts.


Product Features:

1. It employs CNC technology and servo motor-driven feeding, delivering high operational efficiency and consistent workpiece precision. All key hydraulic, pneumatic, and electrical components are of imported origin.

2. Each side is equipped with three sets of punches and dies, which can accommodate three types of punches with different diameters. Controlled by a PLC, the three sets of molds can move synchronously to adjust the punching reference mark.

3. The computer features a Chinese/English interface, enabling user-friendly operation, and supports workpiece drawing display. Programming is simplified, and the equipment can directly utilize program data generated by lofting software. When editing a program, only the workpiece size, hole diameter, reference mark, and workpiece quantity need to be input.

4. The CNC feed carriage is driven by a servo motor, with a photoelectric encoder providing feedback information. Closed-loop control is adopted to ensure high positioning precision.


5. Marking, punching, and shearing processes are fully automated. All finished angle steel components can be unloaded via a pneumatic flipping device, reducing labor intensity.

6. The control system is composed of a host computer, CNC system, servo motor, PLC, and external detection sensors, among other components. Processing operations are initiated simply by inputting workpiece dimensions. Additionally, programs can be stored, selected, displayed, and transmitted according to workpiece numbers.

7. The marking unit adopts a closed-frame structure, ensuring excellent rigidity. Four groups of character boxes are fixed on the marking unit, which can be selected via program control. The marking reference mark can be set arbitrarily. The cylinders for punching, marking, and shearing are of larger specifications; the NC carriage is an upgraded, more robust model; and the clamps feature enhanced structural strength.

These specimens, covering common specifications and processing scenarios in the angle steel tower industry, allow users to directly inspect the equipment’s processing quality, precision, and craftsmanship. They act as a tangible reference for evaluating the equipment’s performance and its compatibility with specific production demands.

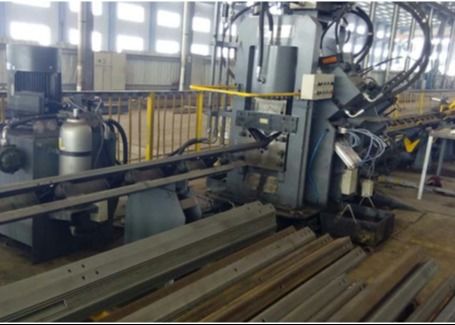

In the construction of ultra-high voltage (UHV) transmission lines—where towers are required to withstand extreme meteorological conditions and heavy loads—this equipment plays a crucial role in processing the angle steel components that form the main framework of the towers. It competently performs the drilling and stamping operations for the angle steel used in tower bodies, cross-arms, and other key structural components, ensuring precise dimensions and robust connections to safeguard the overall stability of the towers.
