Telecom Tower Production Industrial CNC Angle Bending Line Transmission Line Tower Fabrication
Product Introduction:

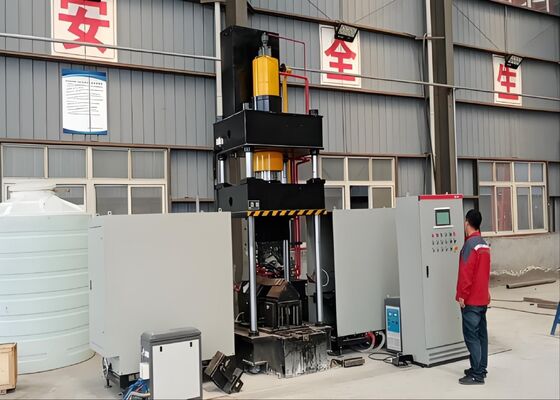

This CNC Thermal Bending System is expertly engineered and thoroughly tested within the factory to ensure the accurate bending of angle steel profiles and flat metal sheets. It is precisely crafted to fulfill the stringent production demands of industries such as structural steel fabrication, mechanical component manufacturing, and architectural metalworking. With exceptional forming precision and reliable operational consistency, this system guarantees that bent angle steel and metal panels meet the exact dimensional and structural requirements, ensuring smooth advancement in subsequent downstream manufacturing processes.
Product parameters:
| Model |
HQ250-700 |
HQ360-900 |
| Oil Tank Pressure (kN) |
1600 |
3150 |
| Outside double-sided bending size (Heel up ) (mm) |
L80*7~L250*32 |
L80*7~L360*40 |
| Outward double-sided bending degree for angles (°) |
30° |
30° |
| Angle steel forward single bending range (mm) |
L80*7~L200*20 |
L100*10~L300*30 |
| Angle steel forward single bending degree (°) |
20° |
20° |
| Bending Plate thickness (mm) |
2~16 |
2~20 |
| Bending Plate width (mm) |
700 |
900 |
| Bending degree for plates (°) |
90° |
90° |
| Angle opening & closing range (mm) |
L80*7~L200*16 |
L100*10~L300*30 |
| Angle opening & closing degree (°) |
16° |
16° |
| Oil Tank Stroke (mm) |
800 |
950 |
| Max.opening height (mm) |
1300 |
1400 |
| Motor Power (kW) |
15 |
22 |
| Heating power (kW) |
60*2 |
120*2 |
| CNC Axis |
3 |
3 |
| Oil tank capacity (L) |
630 |
720 |
| Overall size (m) |
3.5x4.5x4.1 |
4.2x4.5x4.1 |
Product Features:
1. The system is outfitted with a Computerized Numerical Control (CNC) Programmable Logic Controller (PLC) and features a user-friendly touchscreen interface, facilitating efficient data input and real-time monitoring of operational parameters. This configuration guarantees a smooth and intuitive experience for standard operational procedures.
2. The machine integrates cutting-edge intelligent ultrasonic frequency induction heating technology, which enhances production efficiency, reduces manufacturing costs, and ensures full adherence to the facility's environmental protection standards and regulatory requirements.
3. As a comprehensive, all-in-one solution, this equipment eliminates the need for supplementary tools or mold adjustments, thereby streamlining and optimizing the entire production setup process.
4. Through the integration of Computerized Numerical Control (CNC) technology, this system guarantees precise bending of workpieces, consistently upholding stringent product quality standards while simultaneously improving overall production efficiency.
5. The equipment is outfitted with a fully integrated hydraulic system and an advanced electrical control unit, offering a sophisticated configuration that ensures intuitive, user-friendly operation, reliable and safe performance, and the ability to meet the demands of high-volume production.
6. Cold-pressing technology is perfectly suited for processing angle steel components with dimensions up to L100×L100×10 (mm), provided that the required bending angle does not exceed 5 degrees.
7. The standard cycle time for cold-pressing operations is 10 seconds per workpiece, whereas the thermal processing cycle lasts 120 seconds per unit (subject to the material grade and dimensional specifications of the components being processed). Furthermore, fabrication begins only after the heating temperature reaches 800 degrees Celsius (the red-hot phase), with process parameters meticulously defined based on the material type and the required bending angle tolerances.
8. During the thermal treatment phase, once the process parameters are set, operators can initiate the cycle by either pressing the start button or activating the foot pedal switch to commence the fully automated operation sequence. This sequence follows a predefined series of steps, including the heating feed, application of thermal energy, retraction of heating elements upon completion, clamping and compressing of the workpiece, ram lifting, and, finally, the unloading and retrieval of the processed workpiece.
9. In the integrated thermal processing and cold-pressing mode, once the process parameters are configured, cold-pressing operations can commence without delay. The pressure ram does not need to return to its home position; instead, the lower pressing die is raised to create a 100mm clearance, allowing for the easy removal of the workpiece. This streamlined operational flow substantially enhances overall process efficiency.

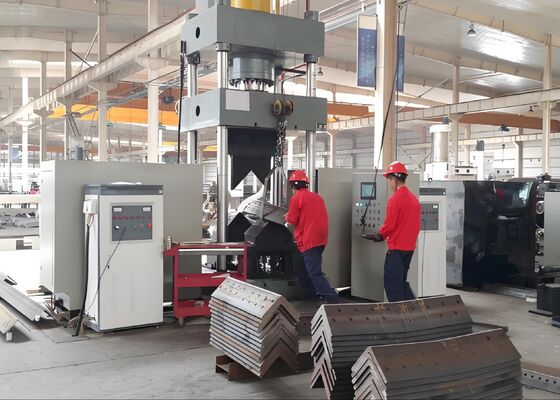

These test samples, derived from the production line of angle steel punching, cutting, and marking machinery, adhere to the standard specifications and processing parameters commonly employed in the angle steel tower industry. They offer users a clear benchmark for evaluating the equipment's processing quality, precision, and workmanship—critical performance metrics that showcase the equipment's capability to fulfill the stringent operational demands of angle steel tower manufacturing.
In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers are subjected to extreme weather conditions and considerable structural loads, this equipment plays a pivotal role in processing the angle steel components that constitute the core load-bearing structure of the towers. It consistently performs drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring superior precision and outstanding structural integrity. This process significantly improves the overall durability of the transmission towers, which is essential for the reliable and uninterrupted operation of UHV power transmission systems.
